Mqtt Endpoint is used to create and start MQTT receiving service, it can subscribe to different topic data, and then route it to different rule chains for processing.

Type

endpoint/mqtt

Startup configuration

This component allows the reuse of shared connection clients through the server field. See Component Connection Reuse for reference.

Field	Type	Required	Description	Default
server	string	Yes	mqtt broker address	-
username	string	No	username	0
Password	string	No	password	-
qOS	int	No	QOS	0
cleanSession	bool	No	CleanSession	false
clientID	string	No	client ID	default random number
cAFile	string	No	CA file path	-
certFile	string	No	Cert file path	-
certKeyFile	string	No	CertKey file path	-

Response

Before exchange.Out.SetBody response, you need to specify the responseTopic parameter through exchange.Out.Headers() or exchange.Out.Msg.Metadata, and the component will respond to the specified topic data:

exchange.Out.GetMsg().Metadata.PutValue("responseTopic", "device.msg.response")
// or
exchange.Out.Headers().Add("responseTopic", "device.msg.response")
exchange.Out.SetBody([]byte("ok"))

Response parameter configuration:

Field	Type	Required	Description	Default
responseTopic	string	Yes	Response topic	-
responseQos	int	No	Response QOS	0

Examples

The following are example codes using endpoint:

• RestEndpoint (opens new window)
• WebsocketEndpoint (opens new window)
• MqttEndpoint (opens new window)
• ScheduleEndpoint (opens new window)
• NetEndpoint (opens new window)
• KafkaEndpoint (opens new window) (Extended component library)

Note: Topic Overlap and Duplicate Messages

In some MQTT brokers (e.g., EMQX), if a client subscribes to overlapping topic patterns, the same message may be delivered once for each subscription, resulting in duplicates. Typical examples:

• /sys/msg/a/+
• /sys/msg/+/+

These two subscriptions have overlapping match ranges. When a message topic falls into the intersection, the same message will be delivered twice (or more, depending on the number of overlapping subscriptions). When routing to rule chains via Mqtt Endpoint, plan for deduplication or avoid overlapping subscriptions.

Recommendation: Subscribe only a widest topic, then route and dispatch via nodes; for example, dispatch by msgType (msgType=topic) or by metadata.topic. Use JS scripts for complex dispatching if needed.

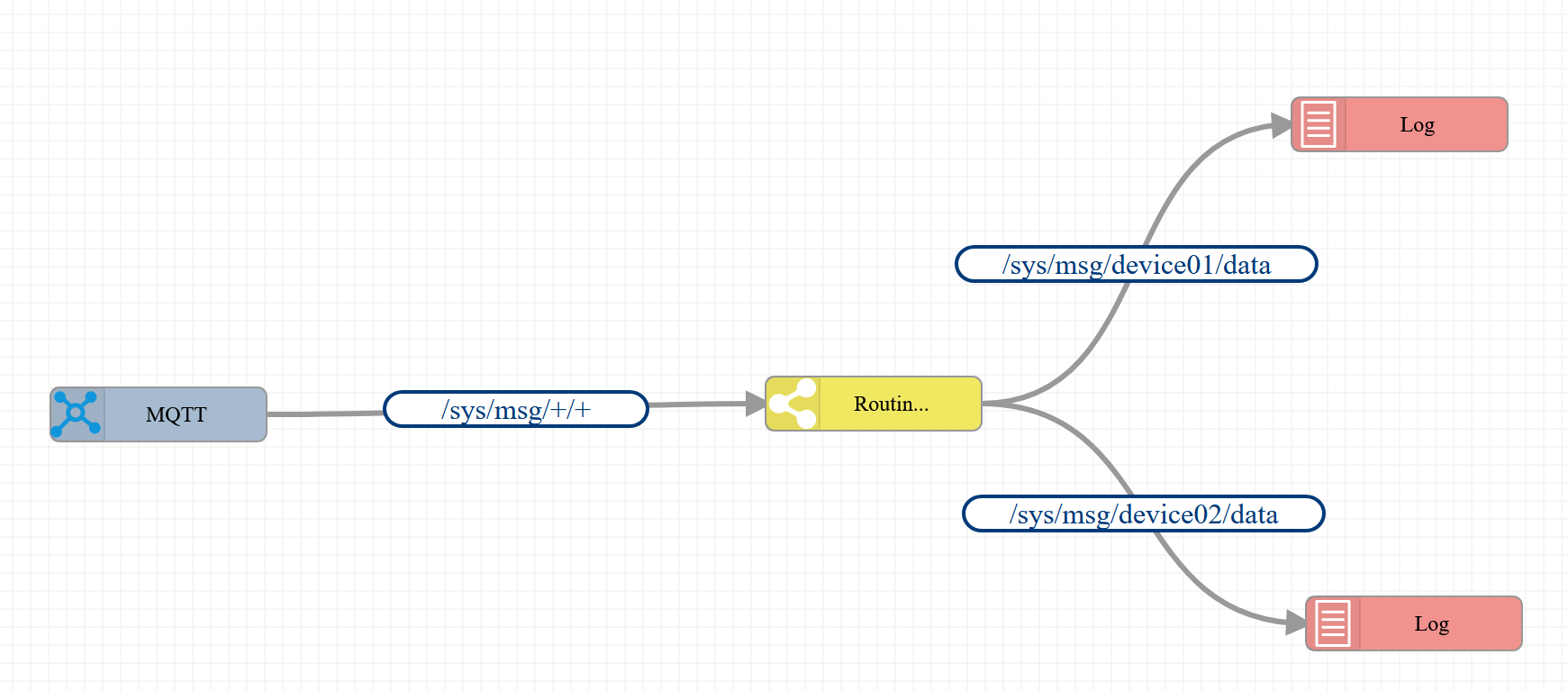

1. Dispatch Option A: distribute using msgTypeSwitch component with msgType matching

{
  "ruleChain": {
    "id": "tgimYPt5L06J",
    "name": "test",
    "root": true,
    "debugMode": true,
    "additionalInfo": {
      "description": "",
      "noDefaultInput": false,
      "layoutX": "306",
      "layoutY": "285"
    },
    "configuration": {}
  },
  "metadata": {
    "endpoints": [
      {
        "id": "node_1",
        "type": "endpoint/mqtt",
        "name": "MQTT",
        "configuration": {
          "clientID": "test5888",
          "maxReconnectInterval": 0,
          "password": "nc_admin",
          "qOS": 0,
          "server": "192.168.62.20:1883",
          "username": "nc_admin"
        },
        "debugMode": false,
        "additionalInfo": {
          "layoutX": 351,
          "layoutY": 132
        },
        "routers": [
          {
            "id": "m62quFtZlMMZ",
            "params": [],
            "from": {
              "path": "/sys/msg/+/+",
              "configuration": null,
              "processors": []
            },
            "to": {
              "path": "tgimYPt5L06J:node_3",
              "configuration": null,
              "wait": false,
              "processors": []
            }
          }
        ]
      }
    ],
    "nodes": [
      {
        "id": "node_6",
        "type": "log",
        "name": "Log",
        "configuration": {
          "jsScript": "return 'Incoming message:\\n' + JSON.stringify(msg) + '\\nIncoming metadata:\\n' + JSON.stringify(metadata);"
        },
        "debugMode": false,
        "additionalInfo": {
          "layoutX": 1048,
          "layoutY": 248
        }
      },
      {
        "id": "node_5",
        "type": "log",
        "name": "Log",
        "configuration": {
          "jsScript": "return 'Incoming message:\\n' + JSON.stringify(msg) + '\\nIncoming metadata:\\n' + JSON.stringify(metadata);"
        },
        "debugMode": false,
        "additionalInfo": {
          "layoutX": 1040,
          "layoutY": -29
        }
      },
      {
        "type": "msgTypeSwitch",
        "debugMode": false,
        "id": "node_3",
        "name": "Message routing",
        "additionalInfo": {
          "layoutX": 748,
          "layoutY": 126
        }
      }
    ],
    "connections": [
      {
        "fromId": "node_3",
        "toId": "node_5",
        "type": "/sys/msg/device01/data"
      },
      {
        "fromId": "node_3",
        "toId": "node_6",
        "type": "/sys/msg/device02/data"
      }
    ]
  }
}
